BMA-KFB2-01

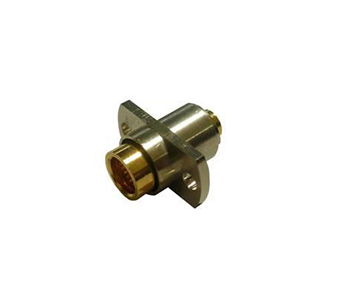

描述：Two hole flange connector
- 描述
- 下載
| Detail Desc. | |
| Electrical Specifications | |
| Impedance | 50Ω |
| V.S.W.R | ≤1.20 |
| I.M.D | -- |
| Current rating | '-40℃/+125℃ |
| Contact resistance | Inner ≤3.0m?/ Outer ≤2.0m? |
| Dielectric Withstanding Voltage | 1500V~ |
| Rated voltage | 335V~ |
| Operating Frequency | DC-3GHz |
| Insulation Resistance | 5000M? Min |
| Mechanical Specifications | |
| Contact/Insert | contact≤13.3N insert≥0.56N |
| Coupling Nut Retention | -- |
| Coupling Proof Torque | -- |
| IP-degree | -- |
| Contact Retention | ≥27N |
| Mechanical Operation | Silver≥500 mating cycles |
提示：此文檔僅供信息查詢，不承諾任何保證.
