4.3-10
4.3-10

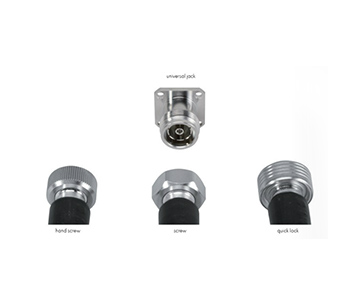

描述：4.3-10 connector
- 描述
- 下載
| Electrical Date | |
| Nominal impedance | 50Ω |
| Frequency range | DC to 12GHz |
| Reflection factor（interface only） | 0.015Max DC-4GHz 0.025Max 4-6GHz |
| Centre and outer contact resistance | initial≤1.0mΩ after conditioning≤1.5mΩ |
| Insulation Resistance | initial≥5GΩ after conditioning≥200MΩ |
| Proof voltage at sea level r.m.s.values at 40Hz to 60Hz | 2500V |
Screening effectiveness tool tightened hand tightened& quick-lock | ≥120dB DC-3GHz:≥90dB 3-6GHz:≥70dB； |
Intermodulation 2@20W 2@40W | —166dBc —160dBc |
| Mechanical data | ＞100 operations |
| Mechanical operations（axial force） | 30N |
| Coupling torque（screw） | ≥5 Nm proof torque：8 Nm |
| Engagement force（quick-lock） | typ：100N |
| Separation force（quick-lock） | typ：80N |
| Tensile strength of coupling mechanism（quick-lock） | ≥450N |
| Vibration | 100m/s2，10g acceleration，2-200Hz |
| Shock | 981m/s2，100g acceleration，? sin 6ms |
| Environmental data | |
| Climatic category | 55/155/56 40/85/21 |
| Sealing | -- |
| Salt mist | duration of spraying 48h |
| High temperature endurance | 250h at 85℃ |
提示：此文檔僅供信息查詢，不承諾任何保證.
