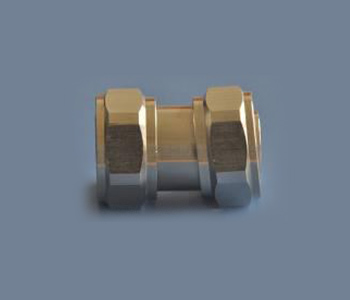

N/716-JK
N/716-JK
描述：Adaptor
- 描述
- 下載
| Detail Desc. | |
| Electrical Specifications | |
| Impedance | 50Ω |
| V.S.W.R | ≤1.1 |
| I.M.D | ≤-122dBm |
| Current rating | '-40℃/+85℃ |
| Contact resistance | Inner ≤0.4m?/ Outer ≤0.2m? |
| Dielectric Withstanding Voltage | 4000V~ |
| Rated voltage | 2700V~ |
| Operating Frequency | DC-3GHz |
| Insulation Resistance | 5000M? Min |
| Mechanical Specifications | |
| Contact/Insert | 8~16N |
| Coupling Nut Retention | Max 225lbs |
| Coupling Proof Torque | Max 310in-lbs |
| IP-degree | -- |
| Contact Retention | Min 45lbs |
| Mechanical Operation | Silver≥500 mating cycles |
