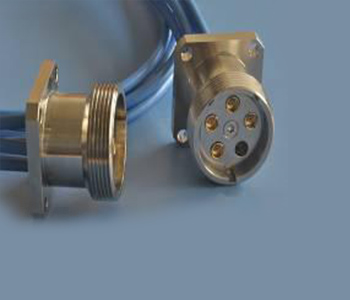

CJ-4J5D-01
描述：cable assemblies
- 描述
- 下載
| Detail Desc. | |
| Electrical Specifications | |
| Impedance | 50Ω |
| V.S.W.R | ≤1.3 |
| I.M.D | |
| Current rating | '-40℃/+85℃ |
| Contact resistance | Inner ≤0.4m?/ Outer ≤0.2m? |
| Dielectric Withstanding Voltage | 1000V~ |
| Rated voltage | 335V~ |
| Operating Frequency | DC-12.4GHz |
| Insulation Resistance | 5000M? Min |
| Mechanical Specifications | |
| Contact/Insert | Max 2-lbs |
| Coupling Nut Retention | |
| Coupling Proof Torque | Min 15in-lbs |
| IP-degree | |
| Contact Retention | Min 6lbs |
| Mechanical Operation | Silver≥500 mating cycles |
提示：此文檔僅供信息查詢，不承諾任何保證.
