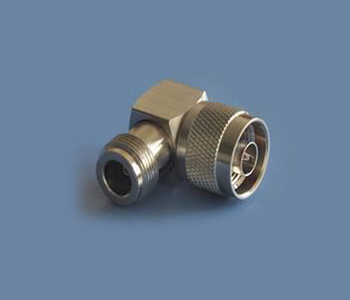

N-JWK-01
N-JWK-01
描述：Adaptor
- 描述
- 下載
| Detail Desc. | |
| Electrical Specifications | |
| Impedance | 50Ω |
| V.S.W.R | ≤1.15 |
| I.M.D | -- |
| Current rating | '-40℃/+85℃ |
| Contact resistance | -- |
| Dielectric Withstanding Voltage | 2500V~ |
| Rated voltage | 1000V~ |
| Operating Frequency | DC-3GHz |
| Insulation Resistance | 5000M? Min |
| Mechanical Specifications | |
| Contact/Insert | Max 6-lbs |
| Coupling Nut Retention | Min 100lbs |
| Coupling Proof Torque | Min 30in-lbs |
| IP-degree | -- |
| Contact Retention | Min 6lbs |
| Mechanical Operation | Silver≥500 mating cycles |
